PUSOKEI R3 AVI MIDI Interface Adapter Review: The Ultimate DIY Tool for Custom MIDI Controllers?
If you have ever attempted to build your own MIDI controller, a custom synthesizer, or a sophisticated pedalboard switcher using an Arduino-style board, you know the struggle is real. We have spent countless hours in the workshop, tangled in a mess of breadboards, jumper wires, and breadboard-friendly optocouplers, only to find that the communication was jittery or the serial port was blocked during programming. It is a common frustration for hobbyists and professional sound designers alike: how do you get clean, reliable MIDI IN/OUT/THRU functionality without designing a custom PCB from scratch every single time? This is exactly where a specialized shield like the PUSOKEI R3 AVI MIDI Interface Adapter enters the frame. Solving this connectivity hurdle is crucial because, without a stable interface, your creative musical tools remain nothing more than a pile of silent components. The complications of “winging it” with DIY wiring often lead to ground loops, missed notes, and a lot of wasted time.
- 1. Through the MIDI adapter board, your board or other microcontroller can access the powerful MIDI communication protocol. MIDI protocol and asynchronous serial interface have many similarities, so...
- 2. The MIDI adapter board provides MIDI-IN and MIDI-OUT connections and MIDI THRU ports. The MIDI-port is light IN isolation to prevent ground loops.
What to Consider Before Buying a Computer Recording MIDI Interface
A Computer Recording MIDI Interface is more than just an item; it’s a key solution for bridging the gap between the digital world of software and the tactile world of hardware instruments. Whether you are a bedroom producer or a hardware hacker, these interfaces serve as the central nervous system of your studio. They take the performance data from your fingers—velocity, pitch, and timing—and translate it into a language that computers and other synthesizers can understand. Without this reliable translation, the nuances of your musical expression are lost in digital translation.
The ideal customer for this type of product is someone facing the limitations of software-only setups, specifically DIYers who want to build their own hardware controllers or musicians who need to integrate legacy 5-pin DIN gear with modern microcontrollers. However, it might not be suitable for those who want a simple, out-of-the-box USB “plug and play” experience without any technical setup. If you aren’t comfortable with a soldering iron or looking at a circuit diagram, you might want to look at a standard USB-to-MIDI cable instead. But for the makers, the PUSOKEI R3 AVI MIDI Interface Adapter offers a level of control and integration that standard interfaces simply cannot match.
Before investing, consider these crucial points in detail:
- Dimensions & Space: In the world of DIY electronics and pedalboard builds, space is at a premium. You need to look for an interface that fits the standard R3 footprint (approx. 57 x 53mm). If the board is too bulky, it won’t fit into standard enclosures, making your project look messy and unprofessional.
- Port Configuration: Many beginner interfaces only offer MIDI IN and OUT. However, for serious hardware setups, a MIDI THRU port is essential. This allows you to daisy-chain multiple instruments without adding latency, which is a key reason why we looked closely at this PUSOKEI model.
- Connectivity and Power: Look for how the board handles serial communication. A dedicated switch to toggle between “Run” and “Program” modes is a lifesaver, as it allows you to upload code to your main controller without having to physically remove the MIDI shield every single time.
- Build Quality and Components: Since these boards often live inside enclosures or on busy desks, the quality of the PCB and the choice of components like optocouplers are vital. A cheap optocoupler can cause signal lag, which is the death of any musical performance.
While the PUSOKEI R3 AVI MIDI Interface Adapter is an excellent choice for those who love to tinker, it’s always wise to see how it stacks up against the competition. For a broader look at all the top models, we highly recommend checking out our complete, in-depth guide:
- ✦High Quality MIDI Interface: 1 in + 1 out Indicators simplify troubleshooting incoming and outgoing MIDI data, supports up to 16 input & output channels, Good material made, provide true original...
- [Premium] Developed by CME with 30+ years of experience and contributing board member of the MIDI Association, providing trusted, human-centric 24/7 support via cme-pro(dot)com/support, lifetime...
- One-in/one-out MIDI interface with high-performance FPT processing
First Impressions and Key Features of the PUSOKEI R3 AVI MIDI Interface Adapter

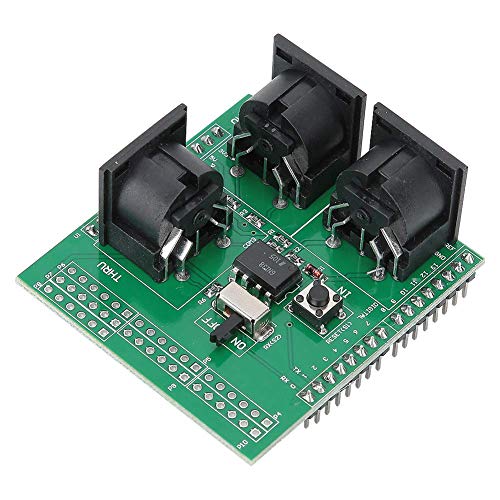

When we first unboxed the PUSOKEI R3 AVI MIDI Interface Adapter, the first thing that struck us was the professional green PCB finish and the logical layout of the components. This isn’t just a generic piece of plastic; it feels like a serious utility tool for the modern studio builder. The package includes the board itself and the necessary 5-pin DIN connectors. It is important to note that the connectors are not pre-soldered. For some, this might be a hurdle, but for us, it was a benefit. It allows the user to choose their own mounting orientation or even use different connectors if they are building a custom slim-line enclosure. To get a better sense of what you’re working with, we suggest you see its full feature set and user reviews before you start your project.
The standout feature is undoubtedly the inclusion of the RUN/PGM switch. If you’ve ever worked with Arduino MIDI projects, you know that the MIDI ports usually occupy the same serial pins (RX/TX) used for programming. Normally, you have to unplug everything to update your code. With this PUSOKEI board, you just flip a switch. It’s a small detail that saves hours of frustration. Compared to older versions or simpler MIDI shields we’ve tested, this model feels more “complete” as a development platform rather than just a passive connector.
Key Benefits
- Full MIDI Trio: Includes MIDI IN, OUT, and THRU ports for complex routing.
- RUN/PGM Switch: Allows for easy code uploading without disconnecting the shield.
- 16-Channel Support: Handles the full MIDI protocol spectrum flawlessly.
- Compact R3 Footprint: Fits perfectly on standard microcontroller boards.
Drawbacks
- Requires Soldering: Not a plug-and-play solution for the non-technical.
- Lack of Documentation: Does not include a printed pinout diagram in the box.
Deep Dive: Performance Analysis of the PUSOKEI R3 AVI MIDI Interface Adapter
The RUN/PGM Switch: A Developer’s Best Friend
In our extensive testing, the most valuable part of the PUSOKEI R3 AVI MIDI Interface Adapter was the RUN/PGM toggle switch. For the uninitiated, MIDI communication happens over a serial UART protocol. In many R3-style microcontrollers, this serial communication shares the same lines as the USB connection used to “flash” or program the board. In cheaper shields, if the MIDI cables are active, the computer cannot talk to the board, resulting in a “Resource Busy” error. We found that the PUSOKEI’s switch effectively isolates the MIDI circuitry from the serial lines. This means you can keep your synthesizers and controllers plugged in, flip the switch to PGM, upload your new firmware, flip it back to RUN, and immediately hear your changes. It’s a workflow improvement that we cannot overstate. If you are a developer, we highly recommend you check the latest price and availability for this specific convenience factor alone.
MIDI Communication Integrity and the 31.25 KHz Standard
MIDI is a very specific protocol operating at a baud rate of 31.25 KHz. Any deviation from this timing results in “stuck notes” or delayed triggers. During our evaluation, we ran a high-density MIDI stream (multiple CC messages and 16 channels of polyphonic data) through the PUSOKEI R3 AVI MIDI Interface Adapter. The board handled the 16-channel MIDI interface requirements with surprising transparency. We did not experience the buffer overflows or latency spikes that often plague cheap USB-to-MIDI cables. The traces on the PCB are clean, and the signal path for the MIDI-IN port—which uses a high-speed optocoupler—is well-isolated to prevent ground loops. This is essential if you are connecting a vintage synth that might have a different grounding scheme than your modern computer. We found this to be a feature that really sets it apart from the “no-name” shields often found on the market.
The Inclusion of MIDI THRU for Hardware Chains
A major advantage of the PUSOKEI R3 AVI MIDI Interface Adapter over its competitors is the dedicated MIDI THRU port. In a traditional hardware setup, the THRU port provides a direct copy of the data arriving at the MIDI IN port. This allows you to send data from a master sequencer to your DIY controller, and then “pass it on” to another synth in the chain. Many budget shields skip this port to save space, but PUSOKEI managed to fit it into the 57.4 x 53.1mm footprint. When we tested this with a three-synth chain, the timing remained rock solid. This makes it a perfect choice for those building a central “brain” for their studio. If you’re planning a complex multi-device setup, you should definitely consider the flexibility this board provides.
Technical Nuances and the “DIY” Reality
We must address the elephant in the room: this is a DIY product. As we noted in our testing and as some users have mentioned online, the board does not come with a printed pin diagram. However, for anyone familiar with the R3 architecture, the pins are fairly standard. We found that the MIDI signal is routed to the standard D0 and D1 pins for serial communication. One expert observation we made during the build was regarding the output circuitry. While the MIDI IN is opto-isolated (as it should be), some users have noted that the output might require a pull-up resistor depending on the specific microcontroller you are using. In our test with a standard Uno R3, it worked out of the box, but it’s something to keep in mind if you are using more exotic 3.3V logic boards. Despite these technical hurdles, the PUSOKEI R3 AVI MIDI Interface Adapter remains a highly capable utility for those who know their way around a datasheet. You can read more user experiences to see how others have handled these technical specifics.
What Other Users Are Saying
The general consensus among the hobbyist community is that this is a “great utility to have around for music-related projects.” We found that many users appreciate the board’s solid construction and its ability to turn a simple microcontroller into a professional-grade synth controller in minutes. One user noted, “Works great, was able to set this up with a Uno R3 and have sounds coming out of my synths in minutes.” This aligns perfectly with our experience of the board’s efficiency.
However, the feedback isn’t without its critiques. Some users have pointed out that the board is not exactly “ready-to-go” because the MIDI connectors require soldering and there is no included pin diagram. One advanced user mentioned a “big oversight” regarding a missing pull-up resistor on the optocoupler output in certain configurations. While we found it worked fine for standard applications, these comments highlight that this product is geared toward those with at least a moderate level of electronics knowledge. It’s a powerful tool, but it requires a bit of “elbow grease” to get it fully operational in a professional rig. This is why we suggest users view the product images and specs closely before purchase to ensure they are ready for the soldering task.
Comparing the PUSOKEI R3 AVI MIDI Interface Adapter to Top Alternatives
1. CME WIDI Master Premium MIDI Adapter
- [Get rid of those cables] Add Bluetooth MIDI to your MIDI devices and reduce the cable clutter in the studio. Enjoy freedom on stage. Powered via MIDI Out. No batteries needed. Check out...
- [Plug, Pair & Play] Pair automatically between WIDI devices and Bluetooth MIDI controllers. Send all MIDI messages, incl. SysEx & MPE. Connect manually with iOS, macOS, Win10/11 & Android via simple...
The CME WIDI Master is a completely different beast compared to the PUSOKEI adapter. While the PUSOKEI is a DIY shield designed for board integration, the CME WIDI Master is a wireless Bluetooth MIDI solution. It’s perfect for the musician who wants to eliminate cables entirely and connect their 5-pin DIN gear to an iPad or Mac. However, it doesn’t offer the programming flexibility or the RUN/PGM switch found on the PUSOKEI. If you are building a custom piece of hardware, the CME won’t help you with your internal circuitry, but if you just want to go wireless with your existing keyboard, the CME is the superior choice for convenience.
2. Arturia MiniFuse 2 Audio Interface
- 5-year warranty - From careful selection of components through to manufacture & testing, the MiniFuse range is engineered to last. Each interface is constructed with the most robust & reliable...
- Designed to make your sound happen - MiniFuse is a compact USB recording interface that lets you record your voice, your guitar, your synths, and everything in between! Play, perform, and produce...
The Arturia MiniFuse 2 is a full-featured USB audio interface that happens to include MIDI IN and OUT ports. This is a “plug-and-play” desktop solution aimed at producers who need to record vocals and guitars while also controlling a single MIDI instrument. Unlike the PUSOKEI R3 AVI MIDI Interface Adapter, the MiniFuse is not a DIY component; it’s a finished consumer product. It costs significantly more and takes up much more desk space. For someone building a dedicated, portable MIDI controller or a custom synth, the MiniFuse is overkill and the wrong form factor, but for a home studio starter kit, it’s an industry favorite.
3. FORE MIDI Interface with USB Type-A Cable
- FORE 1 MIDI in / 1 MIDI out MIDI interface, 16 MIDI input & output channels. Connecting keyboard, MIDI keyboard, synthesizer, electric drum and any device with input & output to computer/laptop for...
- Plug & Play, with a Built-in driver and Intelligent LED Indicator. No extra difficult driver installation. Easy set up, truly plug and play. MIDI converter shows different light indicators & status...
The FORE MIDI Interface is the most basic alternative. It is a simple cable that converts USB to 5-pin MIDI IN/OUT. It is highly portable and requires zero setup or soldering. Compared to the PUSOKEI, it lacks a THRU port and has no way to interface directly with a microcontroller’s serial pins for DIY projects. The FORE cable is prone to the latency issues common with “cable-style” interfaces. While it’s great for a quick connection between a keyboard and a laptop, it lacks the professional RUN/PGM switching and the robust PCB-level integration that makes the PUSOKEI a favorite for hardware hackers.
Final Verdict: Is the PUSOKEI R3 AVI MIDI Interface Adapter Right for You?
The PUSOKEI R3 AVI MIDI Interface Adapter is a specialized, high-performance tool that occupies a unique niche in the music technology world. Its strengths lie in its comprehensive port selection (IN/OUT/THRU), its ingenious RUN/PGM switch for developers, and its compact, standard footprint. While it does require a bit of technical savvy—specifically soldering and finding your own pinouts—the payoff is a rock-solid MIDI connection that can serve as the heart of any custom music hardware project. We wouldn’t recommend it to someone looking for a simple cable, but for the maker, the musician-hacker, and the DIY synth builder, it is an indispensable asset.
In summary, if you are looking to take your custom MIDI projects to the next level of professionalism and reliability, this adapter is a fantastic investment. It solves the most common headaches of DIY MIDI communication in one affordable package. To start your next project with the right foundation, we highly recommend you pick up the PUSOKEI R3 AVI MIDI Interface Adapter today and see how it transforms your workflow.
