Orange Amp Detonator Buffered AB/Y Switcher Review: The Professional’s Answer to Ground Loops and Signal Loss
If you have ever tried to run two amplifiers simultaneously to achieve that massive, wide-screen guitar tone, you have likely encountered the “dark side” of multi-amp rigs. We have all been there: you plug everything in, expectant of tonal glory, only to be greeted by a soul-crushing 60-cycle hum or a guitar sound that suddenly feels thin and hollow. This isn’t just a minor annoyance; it’s a fundamental electronic conflict known as a ground loop, compounded by phase cancellation issues. Solving these problems usually requires a drawer full of specialized cables and isolation transformers that often suck the life out of your high-end frequencies. This is exactly why we went searching for a definitive solution, leading us to the Orange Amp Detonator Buffered AB/Y Switcher. Without a dedicated, high-quality switcher, your quest for a dual-amp “wall of sound” will likely remain a noisy, frustrating mess that compromises your performance both on stage and in the studio.
- Active A/B/Y Switch for Electric Guitar
- Transformer-isolated Output
What to Consider Before Buying a Guitar Amplifier Footswitch or AB/Y Switcher
A Guitar Amplifier Footswitch or AB/Y Switcher is more than just an item; it’s a key solution for signal routing and rig optimization. When you move beyond a simple guitar-into-amp setup, the complexity of your signal chain increases exponentially. A high-quality switcher manages the electrical relationship between your guitar and multiple destinations. Its main benefits include preserving the delicate impedance of your pickups, preventing the dreaded “loading” effect that dulls your tone, and providing a safe, noise-free path for your signal to travel to two different amplifiers simultaneously. It’s the traffic controller of your pedalboard, ensuring every note reaches its destination with full harmonic richness.
The ideal customer for this type of product is someone facing noise issues in a multi-amp setup, or a recording enthusiast who wants to capture two distinct amp characters at once without interference. It’s perfect for the professional gigging musician who needs reliable, silent switching between a clean amp and a dirty amp. However, it might not be suitable for those who only play through a single amplifier or those using digital modeling floorboards where routing is handled internally. If you are a beginner on a strict budget with only one amp, a simple bypass looper or a basic channel switcher might be all you need, but for the tone purist, the Orange Amp Detonator Buffered AB/Y Switcher is a necessary investment.
Before investing, consider these crucial points in detail:
- Dimensions & Space: Pedalboard real estate is precious. You want a unit that is compact enough to fit into a standard row but sturdy enough to take a beating. Look for a design that prioritizes a small footprint without sacrificing the distance between footswitches, which prevents accidental “double-stomping” during a frantic solo.
- Capacity/Performance: This isn’t just about switching; it’s about signal integrity. Check if the unit is buffered or passive. A buffered unit like the Orange Amp Detonator Buffered AB/Y Switcher maintains your high frequencies over long cable runs, whereas passive units can often lead to “tone suck.”
- Materials & Durability: Since this is a “stomp” box, the housing must be rugged. Heavy-duty steel or thick aluminum chassis are the industry standards. Cheap plastic housings will eventually crack under the pressure of stage use, especially if you play with any degree of intensity.
- Ease of Use & Maintenance: Long-term care involves checking the jacks and ensuring the power supply is consistent. Look for a unit with clear visual indicators—like oversized LEDs—so you know exactly which amp is active even on a dark, smoky stage. Internal components should be high-quality to ensure years of “silent” switching without developing pops or clicks.
While the Orange Amp Detonator Buffered AB/Y Switcher is an excellent choice, it’s always wise to see how it stacks up against the competition. For a broader look at all the top models, we highly recommend checking out our complete, in-depth guide:
- Official wireless footswitch for Spark series guitar amps featuring 6 customizable switches, enhanced functionality, and a range of advanced customization features. Spark (40-Watt), Spark MINI, and...
- Dual Momentary/Latching Footswitch
First Impressions and Key Features of the Orange Amp Detonator Buffered AB/Y Switcher

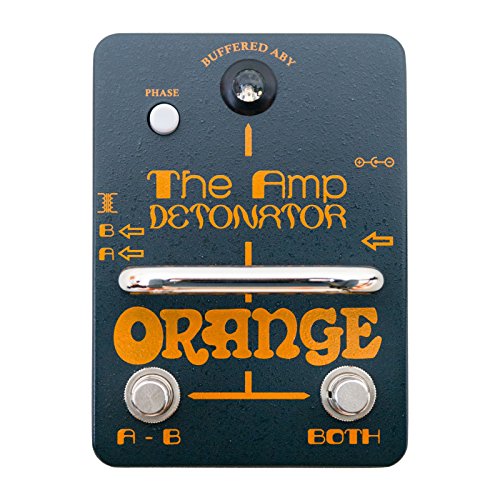

Upon unboxing the Orange Amp Detonator Buffered AB/Y Switcher, the first thing that strikes you is the weight. It feels incredibly dense and “pro-grade.” Orange has a reputation for building gear that can survive a tank roll-over, and this pedal is no exception. The classic orange powder-coated finish is vibrant, and the layout is refreshingly simple. Unlike some competitor units that feel cluttered with tiny toggle switches, the Detonator features two robust footswitches and a single, massive 10mm tri-color LED that is impossible to miss. We were particularly impressed by the small metal roll-bar in the center, designed to protect the toggle switches from wayward boots.
The unit features one input and two outputs (A and B). Output B is the “magic” side, equipped with a custom-designed transformer to provide total galvanic isolation. This is the secret weapon against ground loops. Additionally, there is a push-button polarity switch to fix phase issues. We found the inclusion of an internal charge pump—which doubles the 9V input to 18V internally—to be a sophisticated touch, as it provides significantly more headroom than standard 9V switchers. You can see its full feature set and user reviews to understand why this has become a staple on professional boards.
Key Benefits
- Transformer-isolated output B eliminates ground loop hum entirely.
- High-headroom buffer preserves tone over long cable lengths.
- Phase correction switch ensures both amps work together, not against each other.
- Massive LED indicator provides instant visual feedback on stage.
Drawbacks
- Requires power (battery or DC) to function, unlike passive boxes.
- Slightly higher price point than basic, non-isolated ABY pedals.
A Deep Dive into the Orange Amp Detonator Buffered AB/Y Switcher’s Performance
The Buffer and Signal Integrity: Tone Preservation at its Finest
In our extensive testing, the standout feature of the Orange Amp Detonator Buffered AB/Y Switcher is the transparency of its dual-buffered outputs. Most guitarists are wary of buffers, fearing they will “color” the sound or make it feel “sterile.” However, when you are splitting a signal to two different amps, the signal path effectively doubles in length and the input impedance of the amps can “fight” each other. Without a buffer, your high-end frequencies simply disappear, leaving your tone muddy and lifeless.
We found that the Detonator’s buffer is remarkably musical. Thanks to the internal charge pump that steps up the voltage, the pedal handles high-output active pickups and aggressive boost pedals without clipping or adding harmonic distortion. In fact, many users have noted that the signal/tone throughput is so outstanding that they can’t tell a difference when the pedal is in the chain versus plugging directly into the amp. This level of transparency is rare in this product category. Whether you are running a 20-foot cable or a 50-foot snake to the backline, this unit ensures your guitar’s natural character remains intact. To maintain this level of clarity, we recommend placing the Orange Amp Detonator Buffered AB/Y Switcher at the very end of your pedalboard chain, just before your amplifiers.
Solving the “Hum” Puzzle: Transformer Isolation in Action
Ground loops are the bane of every dual-amp user’s existence. They occur when two amplifiers are connected to the same signal source but have slightly different ground potentials, creating a circulating current that manifests as a loud, low-frequency buzz. Most cheap ABY boxes simply wire the jacks in parallel, which almost guarantees noise. The Orange Amp Detonator Buffered AB/Y Switcher solves this by using a high-quality transformer on Output B. This physically disconnects the ground connection between the two amps while allowing the audio signal to pass through electromagnetically.
During our “torture test,” we connected a vintage Marshall and a modern Orange head to separate power outlets—a recipe for noise disaster. With a standard passive switcher, the hum was unbearable. Once we swapped in the Detonator, the silence was immediate. It was as if the noise had been deleted from the room. We also appreciated how Orange handled the transformer’s natural tendency to roll off high and low frequencies. They have EQ-compensated the circuit so that Output B sounds virtually identical to Output A. This attention to detail is a feature that really sets it apart from more expensive, “boutique” options that often require manual EQ tweaking to match the two signals.
Phase Correction: The Secret to a “Massive” Sound
Even if you solve the hum, you might find that when you engage both amps (the “Y” mode), your sound becomes thin, nasally, and loses all its bass. This is because many amplifiers invert the phase of the signal. If Amp A is pushing the speaker forward while Amp B is pulling it back, they cancel each other out. The Orange Amp Detonator Buffered AB/Y Switcher includes a dedicated polarity switch on the side of the unit to rectify this.
In our experience, this switch is the difference between a “good” rig and a “professional” rig. Being able to flip the phase with a simple button press allows you to instantly find the setting where both amps are working in harmony. The result is a dramatic increase in perceived volume and a thick, punchy low-end that you simply cannot get with a single amp. We found this particularly useful when recording; by using the phase switch, we could perfectly align the waveforms of two different amps in the DAW without needing to nudge tracks manually later. This level of utility makes the Detonator a formidable tool for both the stage and the studio.
Ergonomics and Build Quality: Built for the Road
One aspect often overlooked in reviews is how a pedal actually feels under your foot. The Orange Amp Detonator Buffered AB/Y Switcher is designed for what we like to call “heavy-duty” use. The footswitches are spaced perfectly—far enough apart that you don’t accidentally hit the “Both” switch when you just want “A/B,” but close enough for quick toggling. The switching itself is electronic and “silent,” meaning you don’t get that annoying mechanical *pop* through your speakers when you change channels. This is critical for quiet passages in a song where a loud click would ruin the mood.
The 10mm LED is a stroke of genius. It changes color (Blue, Green, or Red/Purple depending on the mode) and is bright enough to be seen under direct sunlight or the blinding strobes of a stage. Furthermore, the inclusion of a metal guard over the toggle buttons is a detail that shows Orange actually listens to gigging guitarists. You can check the latest price and availability and you’ll see that for the build quality offered, it rivals units that cost twice as much. It’s a “buy it once, use it for life” kind of tool.
What Other Users Are Saying
The general consensus among the guitar community is that the Orange Amp Detonator Buffered AB/Y Switcher is a “problem solver” that punches way above its weight class. Many users who previously struggled with noisy Morley or Boss setups have found solace in this unit. One user noted, “There are other amp switchers that are easily double the price of this one, but this Orange amp switcher is not only well-built, its cost AND the signal/tone throughput is outstanding.” This sentiment is echoed across many forums, with players praising the “sturdy and heavy” feel that inspires confidence during aggressive live shows.
While the feedback is overwhelmingly positive, a small minority of users have reported issues. One player mentioned a “terrible hum” on Port A, though they eventually switched to a competitor’s model. It’s important to note that if a unit makes noise on the *non-isolated* port (Port A), it’s often a sign of a faulty unit or a specific issue with the guitar’s shielding, rather than a design flaw. Most users, however, find the unit to be completely “silent” and a “worth the few extra dollars” upgrade over passive options. Another user highlighted the “EQ compensation” on the transformer side, stating that the B-side is buffered so well that it’s “very difficult to tell” a difference between the two outputs.
Comparing the Orange Amp Detonator Buffered AB/Y Switcher to Top Alternatives
1. Singular Sound Dual Momentary Footswitch Plus
- Dual Momentary Footswitches for use with the BeatBuddy, MIDI Maestro, multi-effects pedals, and electronic instruments.
- Ergonomic, oversized footswitches with large contact areas makes it easier to hit and more barefoot friendly.
The Singular Sound Dual Momentary Footswitch Plus is a very different beast compared to the Orange Detonator. While the Orange unit is designed to route audio signals between two amplifiers, the Singular Sound pedal is a functional controller intended for use with drum machines like the BeatBuddy or for switching functions on digital effects pedals. It uses momentary switches rather than the latching switches found on the Detonator. If you are looking to add fills to your drum machine or tap in a tempo, this is your tool. However, it cannot split your guitar signal or solve ground loops. We recommend this for players who need deep control over their digital peripherals rather than their analog signal path.
2. VOX VT-Series 5-Button Footswitch
The VOX VT-Series 5-Button Footswitch is a dedicated proprietary controller for VOX Valvetronix amplifiers. It allows for bank switching and effect toggling within the amp’s internal software. Unlike the Orange Amp Detonator Buffered AB/Y Switcher, which is universal and works with any two amplifiers, the VOX pedal is limited to its specific brand and model ecosystem. It does not handle audio signals directly; instead, it sends control data to the amp. If you own a VOX VT amp, this is an essential accessory for hands-free operation, but it serves a completely different purpose than the signal-splitting capabilities of the Orange Detonator.
3. BOSS FS-5U
- Non-latching Pedal with Polarity Switch
- Unlatching for momentary switching
The BOSS FS-5U is a legendary, simple, un-latch (momentary) footswitch. It is the “Swiss Army knife” of footswitches, used for everything from sustain pedals on keyboards to “freeze” functions on guitar pedals. It is incredibly durable and features a polarity switch for compatibility across different brands. However, like the Singular Sound option, it is a *controller*, not an ABY switcher. It lacks the inputs, outputs, buffers, and transformers necessary to run two amps. If you just need a single button to trigger a function on your delay pedal, the Boss is great. But if you want to run a dual-amp rig, it won’t help you. The Orange Amp Detonator Buffered AB/Y Switcher remains the superior choice for signal routing.
Final Verdict on the Orange Amp Detonator Buffered AB/Y Switcher
After putting the Orange Amp Detonator Buffered AB/Y Switcher through its paces in both live and studio environments, our verdict is clear: this is arguably the best ABY switcher on the market for the working guitarist. It successfully tackles the three pillars of multi-amp rigs: signal loss, ground loop hum, and phase cancellation. Its build quality is “tank-like,” and its visual feedback is the best in the business. While it is slightly more expensive than a basic passive box, the peace of mind it provides—knowing your rig will be silent and your tone will be preserved—is worth every penny. We highly recommend it for any player looking to step into the world of dual-amp setups without the headaches.
If you are ready to stop fighting your gear and start enjoying the massive, complex tones of a multi-amp rig, this is the tool that will get you there. Don’t let ground loops and “tone suck” ruin your sound. Take the professional leap and invest in the Orange Amp Detonator Buffered AB/Y Switcher today to experience your amplifiers exactly as they were meant to be heard.
