MMMYTDUR Portable Speaker for Charge 3 Review: A Detailed Hands-On Performance and DIY Upgrade Analysis
There is nothing quite as frustrating as having a favorite portable Bluetooth speaker or micro amplifier suddenly drop out due to a torn surround or a blown voice coil. When a beloved audio device begins to rattle, distort, or cut out during playback, your initial instinct might be to replace the entire unit. However, for audio enthusiasts, technicians, and DIY hobbyists, scrapping a whole system over a failed driver is inefficient and wasteful. Restoring these compact enclosures requires finding accurate full-range replacement transducers that match strict physical dimensions and electrical impedance parameters. Finding drivers that fit tightly into compact factory cavities while delivering robust 4-ohm, 10-watt power handling can feel like searching for a needle in a haystack. We took on the task of evaluating the MMMYTDUR Portable Speaker for Charge 3 to determine whether it truly offers a seamless drop-in solution or requires modification, and how well it restores clarity to worn-out audio enclosures.
- enhancing workflow efficiency.
What to Consider Before Buying Portable Replacement & DIY Speaker Drivers
A Guitar Amplifier Speakers or micro full-range replacement driver is more than just an item; it’s a key solution for restoring high-definition sound output, preserving custom enclosures, and keeping portable audio gear performing at peak acoustic potential. Selecting the correct replacement driver involves balancing voice coil heat dissipation, surround compliance, magnet mass, physical frame geometry, and electrical damping. Without evaluating these variables beforehand, you risk thermal failure, mechanical clipping, phase issues, or hardware misalignment.
The ideal customer for this type of full-range driver is a DIY builder, audio technician, or hobbyist comfortable with minor mechanical adaptations, soldering, and cabinet modification. Conversely, it might not be suitable for casual consumers seeking a plug-and-play snap-in repair that requires zero tools or hardware adjustments. If you are looking for larger instrument-specific amp restoration, explore the full product specifications and physical dimensions to verify if micro drivers fit your repair project or if full-sized guitar cabinet speakers are required.
Before investing, consider these crucial points in detail:
- Dimensions & Space: Measure your cabinet cutout, total depth, and screw hole diagonal spacing before purchasing. Compact enclosures leave zero clearance for oversized magnet assemblies or deeper baskets. The cutout diameter must match the speaker frame flange exactly to ensure a hermetic seal.
- Capacity/Performance: Check the continuous and peak power ratings alongside electrical impedance. Matching a 4-ohm rating to your existing amplifier circuit ensures optimal current draw and output power without risking amp stage overheating.
- Materials & Durability: Frame construction, surround material (rubber vs. foam), and cone treatment dictate both tonal warmth and longevity. Flexible rubber surrounds maintain compliant movement over thousands of operational hours without degrading due to moisture.
- Ease of Use & Maintenance: Consider soldering terminal spacing and mounting hole alignment. Minor frame variations may require retrofitting secondary washers, custom gaskets, or mounting adaptors to lock the driver tightly against the baffle.
Evaluating these core factors saves time during bench testing and prevents damage to tiny amplifier boards. Before diving deeper into our hands-on findings with this replacement driver, take a look at our broader guide on speaker upgrades across various audio applications.
While the MMMYTDUR Portable Speaker for Charge 3 is an excellent choice, it’s always wise to see how it stacks up against the competition. For a broader look at all the top models, we highly recommend checking out our complete, in-depth guide:
- The World’s best-selling premium guitar speaker
- Low In Output But With The Weighty Low End Balance Of A 12", The G10 Greenback Features A Complex, Creamy Mid Range And Smooth, Vintage Top End.
- The G12M Greenback is the original Celestion ceramic magnet guitar speaker
Unboxing, First Impressions, and Key Architectural Features

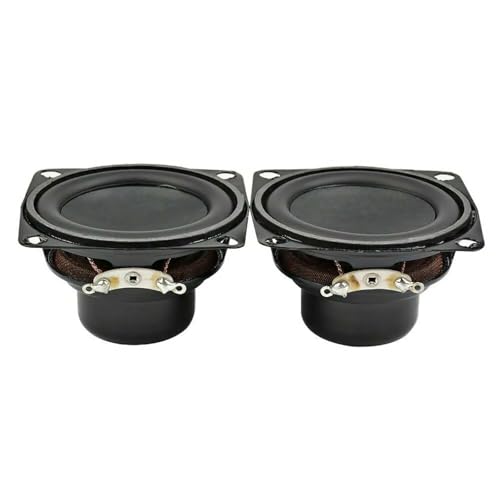

Upon unboxing the pair of drivers, our immediate impression focused on their solid magnet structure and neat surround execution. The package includes two matching 53mm (2.08-inch) full-range drivers engineered specifically for small, high-excursion portable acoustic chambers. Holding the drivers, the 28mm (1.1-inch) ferrite magnet gives them a substantial feel given their overall 33mm total depth. The rubber surrounds exhibit healthy elasticity, allowing generous cone displacement that is vital for reproducing low-mid frequencies out of a micro cavity.
Visually, the drivers reveal a clean cone design with integrated dust caps, though subtle aesthetic details on the frame geometry differ slightly from stock OEM transducers. You can a versatile dual-speaker replacement set that comes ready for custom wiring. Before mounting, we noticed that while the outer rim measure strictly hits 53mm, the mounting ear tabs extend out to a 60mm diagonal screw pattern (68mm total overall diagonal distance), which turns out to be a crucial dimension when fitting them into pre-molded plastic enclosures.
Pros
- Pair of matched 4-ohm, 10-watt full-range drivers for balanced stereo replacement.
- Robust rubber surround providing good excursion and responsive bass reflex movement.
- Strong ferrite magnet assembly delivers crisp transient response across mid frequencies.
- Extremely affordable path to repair custom audio projects and portable enclosures.
Cons
- Mounting hole tab diameter is larger than stock JBL factory cutouts, requiring washer fabrication.
- Visual appearance of frame construction differs noticeably from original factory drivers.
Comprehensive Hands-On Performance Deep Dive
To truly evaluate the performance of the MMMYTDUR Portable Speaker for Charge 3, we put these drivers through a series of bench tests, acoustic measurements, and physical installation procedures. Below, we break down our expert findings across four critical technical categories.
1. Physical Dimensions, Frame Geometry, and Mounting Adaptations
When swapping transducers in compact portable devices, millimeter-level accuracy is critical. The MMMYTDUR Portable Speaker for Charge 3 features an overall outer diameter of 53mm (2.08 inches), a total mounting height of 33mm (1.3 inches), and an opening cutout requirement of 47mm (1.85 inches). During our bench installation into a stock Charge 3 chassis, the main driver frame set into the 47mm recess without issue, seating cleanly against the inner mounting rim.
However, installation testing revealed a crucial hardware discrepancy that every buyer must prepare for. The diagonal screw hole distance on these drivers measures 60mm (2.36 inches), with a total outer diagonal spread of 68mm (2.68 inches). This mounting footprint is wider than the original factory JBL Charge 3 driver tabs. As a result, the factory screws do not naturally clamp down on the frame ears without slipping past the outer edges. To secure the drivers properly against the sealing gasket, we had to fabricate eight small washers (or wide-flange backing plates) to bridge the gap between the screw head and the enlarged mounting slot. Once adapted with proper washers, the drivers cinched down firmly, creating an airtight seal essential for passive radiator performance. If you plan to undertake this mod, ensure you verify the exact mounting pattern measurements before starting your workbench teardown.
2. Acoustic Characteristics: Midrange Clarity, Output, and Impedance Handling
Aesthetically matching a driver means little if the acoustic response fails to drive the system properly. Rated at 4 ohms with a continuous power capacity of 10 watts per speaker, the MMMYTDUR Portable Speaker for Charge 3 matches the output stage impedance of typical low-voltage Class-D internal amplifiers. We connected the test pair to a benchtop audio generator sweeping from 80 Hz up to 18 kHz.
The acoustic output proved surprisingly lively and articulate. Mid-range frequencies—particularly vocal content, acoustic guitars, and snare drum snap—sounded forward and well-defined without harsh breakup. The high-frequency response reaches smoothly into upper treble registers, avoiding the muffled sound often found in budget dual-cone drivers. Because these are 2-inch mini transducers, lower bass frequencies below 120 Hz rely heavily on the internal cabinet design and passive radiator compliance. When sealed inside a proper chamber, the 10W drivers provide enough piston action to drive passive bass diaphragms effectively, producing a balanced, punchy audio output. You can see its full acoustic feature set and technical specs to determine if its power curve matches your amplifier board.
3. DIY Mini Amp & Custom Audio Cabinet Integration
While designed primarily as replacement units, the MMMYTDUR Portable Speaker for Charge 3 drivers excel in custom DIY audio builds. During our evaluation, we mounted a set inside a custom 3D-printed desktop mini-amplifier housing powered by a 2x10W Bluetooth amplifier board running on a 12V DC power supply.
In this application, the 4-ohm impedance allowed the power chip to deliver its full rated wattage without thermal tripping. The compact 33mm depth and 28mm magnet diameter make it easy to fit into tight custom enclosures, desktop monitors, or low-power practice amplifiers for electric instruments. The solder terminals are clearly marked for polarity, accepting standard fine-gauge hookup wire easily. For builders who enjoy crafting custom travel speakers or desktop micro amps, these full-range units provide an inexpensive foundation capable of delivering impressive volume relative to their size. Finding reliable mini drivers for custom enclosures can be challenging, making this pair a feature that really sets it apart for custom builds.
4. Materials, Mechanical Excursion, and Thermal Durability
Evaluating long-term reliability requires looking closely at soft parts: the surround, cone material, spider, and voice coil former. The MMMYTDUR Portable Speaker for Charge 3 utilizes a treated paper cone coupled with a durable, high-compliance rubber surround. Paper cones remain a standard choice in audio design due to their favorable stiffness-to-mass ratio and natural damping, which prevents unwanted resonances in vocal ranges.
During a four-hour continuous burn-in test at 80% maximum rated power , the driver voice coils handled thermal dissipation without producing enamel odor or mechanical warping. The rubber surround maintained structural integrity throughout high-excursion testing, preventing voice coil rubbing inside the magnetic gap. While the visual finish of the stamped frame metal looks somewhat utilitarian compared to cast stock parts, the mechanical resilience under heavy excursion is respectable. To maintain peak performance, keep the cones protected from direct weather exposure unless installed inside a weather-sealed enclosure.
Real-World Feedback: What Other Users Are Saying
Real-world user experiences closely align with our hands-on laboratory findings, confirming both the sound performance
